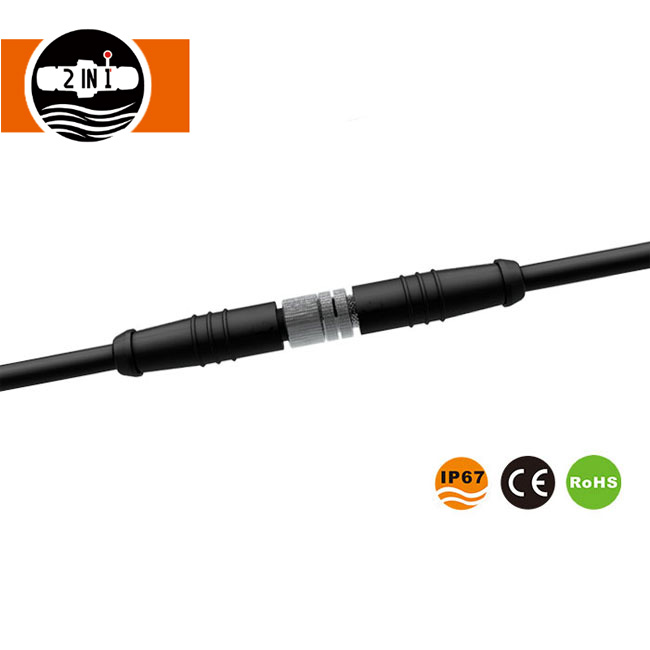

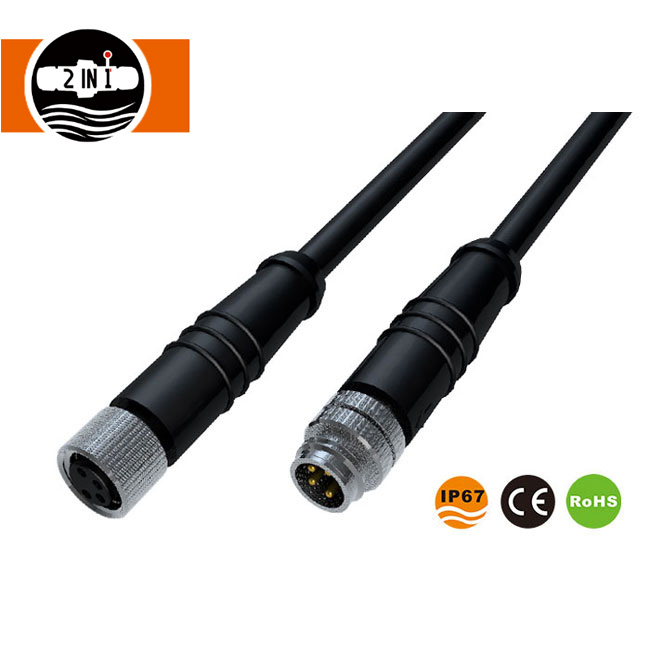

Small Size Metal Nut Waterproof Wire Connector
  • Small Size Metal Nut Waterproof Wire ConnectorSmall Size Metal Nut Waterproof Wire Connector
  • Small Size Metal Nut Waterproof Wire ConnectorSmall Size Metal Nut Waterproof Wire Connector

Small Size Metal Nut Waterproof Wire Connector

Small Size Metal Nut Waterproof Wire Connector is supper min, it can saving installation place,quick and easy mating and locking, even in places difficult to reach, anti vibration locking design. M8 connector is designed for the device connection for sensor/actuator boxes,field- bus modules and industrial controllers. It provides with 2pin 3pin 4pin contacts configuration cable, most of the connectors are either factory PUR/PVC cable over molded or supplied with attached wire leads. Welcome to buy Small Size Metal Nut Waterproof Wire Connector from HuaYi-FaDa Technology. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

HuaYi-FaDa Technology is one of the professional Small Size Metal Nut Waterproof Wire Connector manufacturers and suppliers in China. we have our own brand in China and have achieved good response. Our producuts are favored by domestic and foreign customers, this M8 super mini waterproof connector, it is with gold-plated contact to protect against corrosion. Customized M8 male or female connector as output, and customized cable length available.


Parameter of Small Size Metal Nut Waterproof Wire Connector

Specifications:

Product name

Small Size Metal Nut Waterproof Wire Connector

Item number

M8 metal nut molded with cable

Connection way

Molded with cable, cable type and cable length is customized.

Core number

2 pin,3 pin, 4 pin available

Color

Black shell with metal nut

Waterproof level

IP67

Cable specification

20-26AWG

Cable diameter range

4.0-6.0mm

Rated current (A)

2-4A

Operating voltage (AC.V.rms)

300V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with gold-plating

Seal

Silicon


Feature And Application of Small Size Metal Nut Waterproof Wire Connector

Feature of Small Size Metal Nut Waterproof Wire Connector:
1) Supper mini waterproof connector with outer diameter around 10~11mm.
2) Over-molded with cable, thread locking nuts.
3) Front panel mount and rear panel mount available.
4) Knurled metal nuts and nylon nuts available.
5) Suitable for outdoor lighting like wall washer.

PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.

Application industries:


- LED screen

-Automation

- Stage equipment

- Street lamp lighting

- Medical equipment

- Instruments

- Solar energy equipment

- Transport and facilities

- Electric power equipment

- Vehicle equipment

- Communications equipment

- Heavy machinery


Product Details of Small Size Metal Nut Waterproof Wire Connector

Connection:


Shipping And Service

1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.

For batch orders, it is cheaper to ship by sea.

2)Service:
1 decade of FACTORY production experience.
2 multiple design patents.
3 cooperation with many well-known domestic companies, such as Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
4 through a variety of high standards of international certification requirements: such as UL, CE, ROHS.
5 rapid scale production capacity, only 15 days from mold opening to mass production.



FAQ

1)Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
2)Q: I am interested in your connectors, do you have a price list ?
A: We have no a price list of all the connectors. Because we have so many models and the price keeps changing because of the market demand. If you need the price of any our connectors, please send us your requirements, we will recommend suitable connectors and send you quotation accordingly.
3)Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.
4)Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see is to believe, we believe you will be satisfied with our products.
5)Q : Can you make customized products and customized packing?
A: Yes. We have professional R&D team and customized experience for years. No matter how special request about connectors OR packing, just send us your technical request, we would make it real for you!
6) Q: Can you provide samples ? Are the samples free ?
A: Yes , we support 3pcs samples free one time for quality test before bulk order, but the shipping cost need to be paid.
7) Q : What about your delivery time?
A: We are factory with bulk stock, usually shipment arranged within 3 working days after payment received. If no stock,we would check and keep your informed.
8) Q: Do you have a guarantee of your product quality?
A: Yes, 3 years guaranteed.
9) Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 5000 sets.
For order qty over 5000 sets, T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages before you pay the balance.



Hot Tags: Small Size Metal Nut Waterproof Wire Connector, China, Wholesale, Buy, Quality, Cheap, Customized, Manufacturers, Suppliers, Factory, Free Sample, Quotation, CE, UL, 3 Years Warranty
