IP67 3 Pin Waterproof Connector is designed for the device connection for sensor/actuator boxes,field- bus modules and industrial controllers. It provides with 2pin 3pin 4pin contacts configuration cable, most of the connectors are either factory PUR/PVC cable over molded or supplied with attached wire leads. The following is an introduction to IP67 3 Pin Waterproof Connector, HuaYi-FaDa Technology hope to help you better understand IP67 3 Pin Waterproof Connector. Welcome new and old customers to continue to cooperate with us to create a better future together!
HuaYi-FaDa Technology is one of the professional IP67 3 Pin Waterproof Connector manufacturers and suppliers in China. we have our own brand in China and have achieved good response. Our producuts are favored by domestic and foreign customers, this IP67 3 Pin Waterproof Connector, it is with gold-plated contact to protect against corrosion. Customized IP67 3 Pin Waterproof Connector as output, and customized cable length available.
Parameter of IP67 3 Pin Waterproof Connector
Specifications: |
|
Product name |
Ip67 3 Pin Waterproof Connector |
Item number |
M8 nylon nut molded with cable |
Connection way |
Molded with cable, cable type and cable length is customized. |
Core number |
2 pin,3 pin, 4 pin available |
Color |
Black shell with black plastic nut |
Waterproof level |
IP67 |
Cable specification |
20-26AWG |
Cable diameter range |
4.0-6.0mm |
Rated current (A) |
2-4A |
Operating voltage (AC.V.rms) |
300V |
Withstand voltage (AC.V) |
1500V at 1min |
Contact resistance |
<5mΩ |
Insulation resistance |
>500MΩ |
Durability |
≥3000 mating and unmating cycles |
Temperature rating |
-40°C~105°C |
Flame-resistance |
94-V0 |
Material: |
|
Shell and insulated parts |
High performance engineering plastics |
Contact pin |
Copper alloy with gold-plating |
Seal |
Silicon |
Feature And Application of IP67 3 Pin Waterproof Connector
Feature of Ip67 3 Pin Waterproof Connector:
1) Supper mini waterproof connector with outer diameter around 4.0-6.0mm.
2) Over-molded with cable, thread locking nuts.
3) Suitable for outdoor lighting like wall washer.
PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.
Application industries: |
|
- LED screen |
-Automation |
- Stage equipment |
- Street lamp lighting |
- Medical equipment |
- Instruments |
- Solar energy equipment |
- Transport and facilities |
- Electric power equipment |
- Vehicle equipment |
- Communications equipment |
- Heavy machinery |

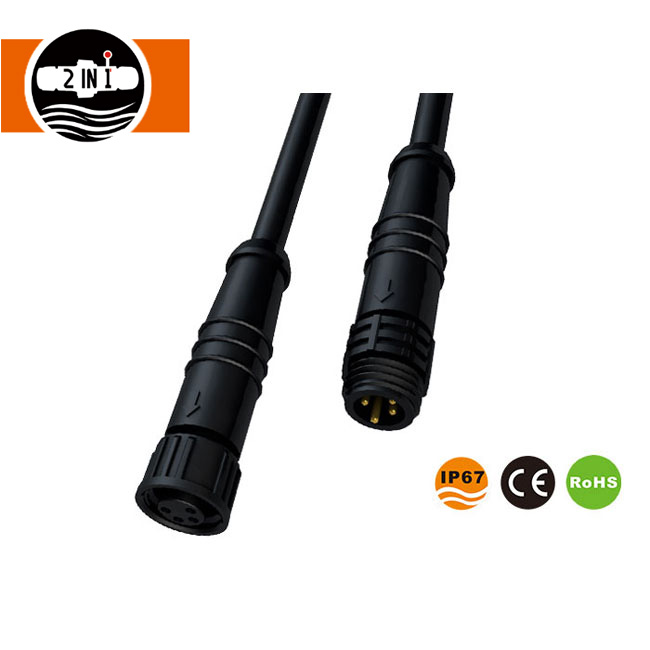

Product Details of IP67 3 Pin Waterproof Connector

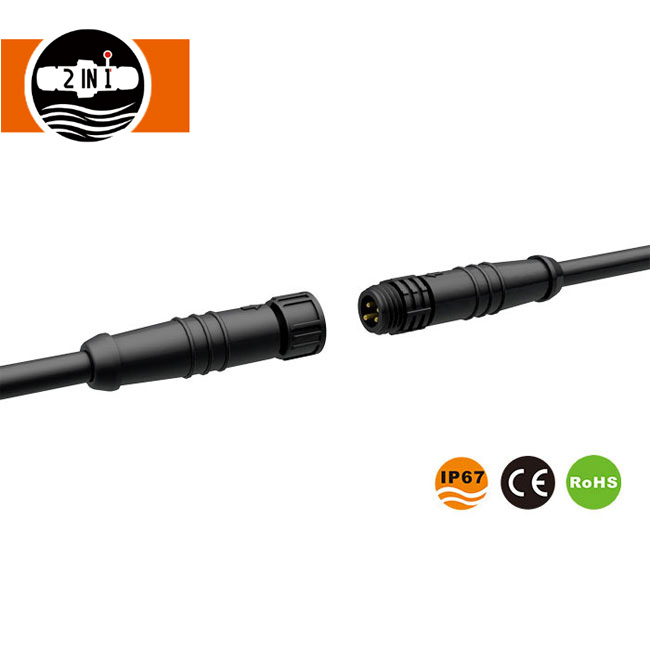

Connection:
Shipping And Service
1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.
For batch orders, it is cheaper to ship by sea.
2)Service:
1. Decade of FACTORY Production Experience.
2. Multiple Design Patents Connector.
3. OEM Supplier of Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
4. Manufactured Under Strict Controls.
5. 100% Tested (Not Just Batch Tested).
6. Quality Guarantee: 3 Years.
7. Rapid Scale Production Capacity: only 15 days from mold opening to mass production.
FAQ
1)Q: I am interested in your connectors, do you have a price list ?
A: We have no a price list of all the connectors. Because we have so many models and the price keeps changing because of the market demand. If you need the price of any our connectors, please send us your requirements, we will recommend suitable connectors and send you quotation accordingly.
2)Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.
3)Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see is to believe, we believe you will be satisfied with our products.
4)Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
5)Q : Can you make customized products and customized packing?
A: Yes. We have professional R&D team and customized experience for years. No matter how special request about connectors OR packing, just send us your technical request, we would make it real for you!
6) Q: Can you provide samples ? Are the samples free ?
A: Yes , we support 3pcs samples free one time for quality test before bulk order, but the shipping cost need to be paid.
7) Q : What about your delivery time?
A: We are factory with bulk stock, usually shipment arranged within 3 working days after payment received. If no stock,we would check and keep your informed.
8) Q: Do you have a guarantee of your product quality?
A: Yes, 3 years guaranteed.
9) Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 5000 sets.
For order qty over 5000 sets, T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages before you pay the balance.
