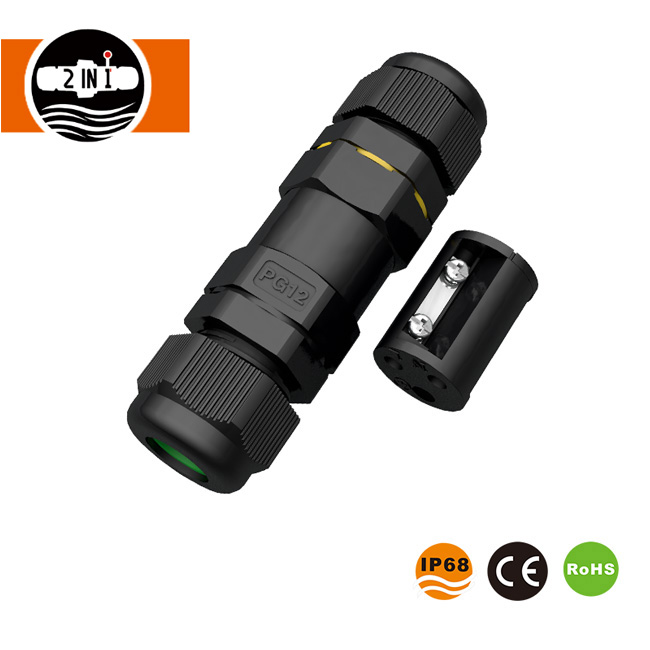

2 Way Waterproof Screw Connector
  • 2 Way Waterproof Screw Connector2 Way Waterproof Screw Connector

2 Way Waterproof Screw Connector

2 Way Waterproof Screw Connector, 2 pole, 3 pole, 4 pole, 5 pole straight connector with screw termination for fast connection, no welding needed, field assembly type with rating current 10A for 2 pole. Welcome to buy 2 way waterproof screw Connector from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

HuaYi-FaDa Technology is one of the professional 2 Way Waterproof Screw Connector manufacturers and suppliers in China. We have been focusing on the research in the 2 Way Waterproof Screw Connector field, and with our rich experience and professional technology, we have our own brand in China and have achieved good response. Our 2 Way Waterproof Screw Connectorwith screw termination for fast connection, no welding needed, field assembly type with rating current 10A for 2 pole, strong sealing waterproof design, IP68 waterproof connector with easy connection.


2 Way Waterproof Screw Connector


Specifications:

Product name

2 Way Waterproof Screw Connector

Item number

PG12

Connection way

Screw thread locking

Core number

2 pin, 3 pin, 4 pin, 5 pin available

Color

Black

Waterproof level

IP67

Cable specification

14AWG~20AWG

Cable diameter range

6.0~12.5mm

Rated current (A)

10A for 2pin, 3pin, 8A for 4pin, 6A for 5pin

Operating voltage (AC.V.rms)

300V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

UL94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with nickel-plating

Seal

Silicon

2 Way Waterproof Screw Connector




2 Way Waterproof Screw Connector


COMPANY INTRODUCTION

2 Way Waterproof Screw Connector

Established in 2009, ShenZhen HuaYi-FaDa Technology Co., Ltd. (also known as Shenzhen 2IN1 Technology Co., Ltd.) is a professional waterproof connector manufacturer which always adheres to the purpose of “Quality First, Customer Supreme” as well as long-term vision of “Based on domestic market and take a broad view of the whole world” . Our company has acquired more than 20 series of waterproof connectors with thousands of various styles, which are widely used in Automation, Instruments, Machinery and equipment, Transport and facilities, New Energy and Outdoor application connection of LED products.

Our company has developed into a professional manufacturer of waterproof connectors from the fierce market competition. We have our own mold processing workshop, injection workshop, wire extruding production line and hardware processing workshop with around 200 employees and over 8,000 square meters of factory area.
OEM, ODM service available for connectors and wires. The company has provided OEM service for Philips, OSRAM, Amphenol for over 7 years.


OUR ADVANTAGES

HONORARY CERTIFICATE

THE EXHIBITION

LOGISTICS & PAYMENT

FAQ
