China Watertight Circular Connectors Factory Directly Supply. HuaYi-FaDa Technology is a large-scale Watertight Circular Connectors manufacturer and supplier in China.
HuaYi-FaDa Technology as the professional manufacturer, we would like to provide you Watertight Circular Connectors . And we will offer you the best after-sale service and timely delivery. Our M20 male and female bulkhead waterproof connector, bulk design ensure large current safety, It is with gold-plated contact to protect against corrosion. M20 connector with metal nut material, multiple pin, 2pin, 3pin, 4pin, 5pin, 6pin, 8pin,2+2pin, 2+3pin, 2+4pin, Over-molded with cable, using nylon PA66 material to ensure the product quality and stability OEM and ODM service design available.
Parameter of Watertight Circular Connectors
Specifications: |
|
Product name |

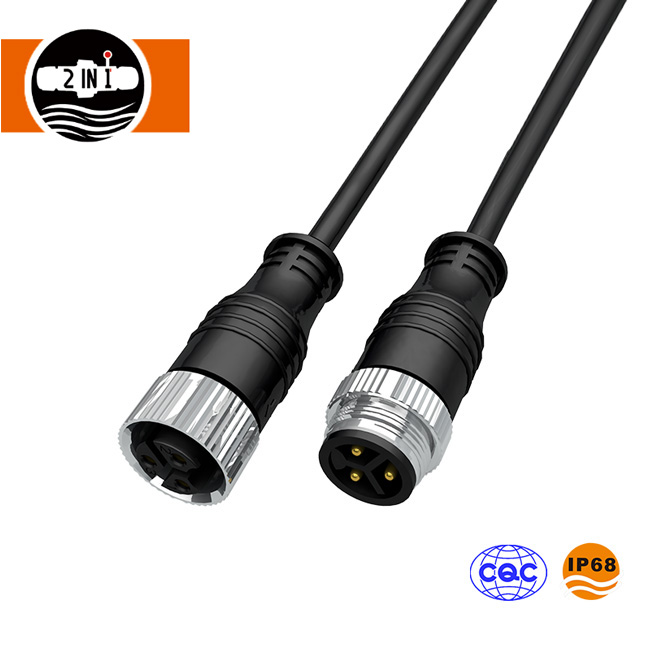

M20 Watertight Wire Connectors |
Item number |
M20 molded with cable |
Connection way |
Molded with cable, cable type and cable length is customized. |
Core number |
2pin, 3pin, 4pin, 5pin, 6pin, 8pin, 2+2pin, 2+3pin, 2+4pin |
Color |
Black shell with metal nut |
Waterproof level |
IP68 |
Cable specification |
0.5mm2~2.0mm2 |
Cable diameter range |
5.0-8.5mm |
Rated current (A) |
5A-10A |
Operating voltage (AC.V.rms) |
125V-300V |
Withstand voltage (AC.V) |
1500V at 1min |
Contact resistance |
<5mΩ |
Insulation resistance |
>500MΩ |
Durability |
≥3000 mating and unmating cycles |
Temperature rating |
-40°C~105°C |
Flame-resistance |
94-V0 |
Material: |
|
Shell and insulated parts |
High performance engineering plastics |
Contact pin |
Copper alloy with gold-plating |
Seal |
Silicon |
Product Details of Watertight Wire Connectors
Connection:
Feature And Application of Watertight Circular Connectors
Feature of M20 Watertight Wire Connectors
1) Nylon material bulkhead industrial external connector.
2) IP68 waterproof protection.
3) 2 pin, 3 pin, 4 pin, 5 pin, 6 pin, 8 pin, 2+2pin, 2+3pin, 2+4pin available.
4) Shell material: Nylon PA66 to ensure the quality.
5) Bulkhead to ensure large current safety.
6) Metal and plastic (Nylon) material head available.
PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.
Application:
1) Outdoor Lighting.
2) LED lighting.
3) Display screen.
4) Electricity,Solar Energy.
5) Monitors.V 6) Testing instruments.
FAQ
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
Q: What is your terms of payment?
A: T/T in advance for small quantity; quantity over 5000 sets, 30% prepayment and rest before shipment.
We'll show you the photos of the products and packages before you pay the balance.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production, depending on specific order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.
Q: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 11years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
Q: What's the lead time?
A: Sample order will take 1-3 days, mass production will take 1-2 weeks for the order quantity more than 100K pieces.
Shipping And Service
1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.
For batch orders, it is cheaper to ship by sea.
2)Service:
We are a professional manufacturer who owns a factory. We can provide you with:
1. Decade of FACTORY production experience.
2. Rapid scale production capacity, only 15 days from mold opening to mass production.
3. Through a variety of high standards of international certification requirements: such as UL, CE, ROHS.
4. Multiple design patents.
5. Cooperation with many well-known domestic companies, such as Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
With us, you can get the best goods in shortest time.
