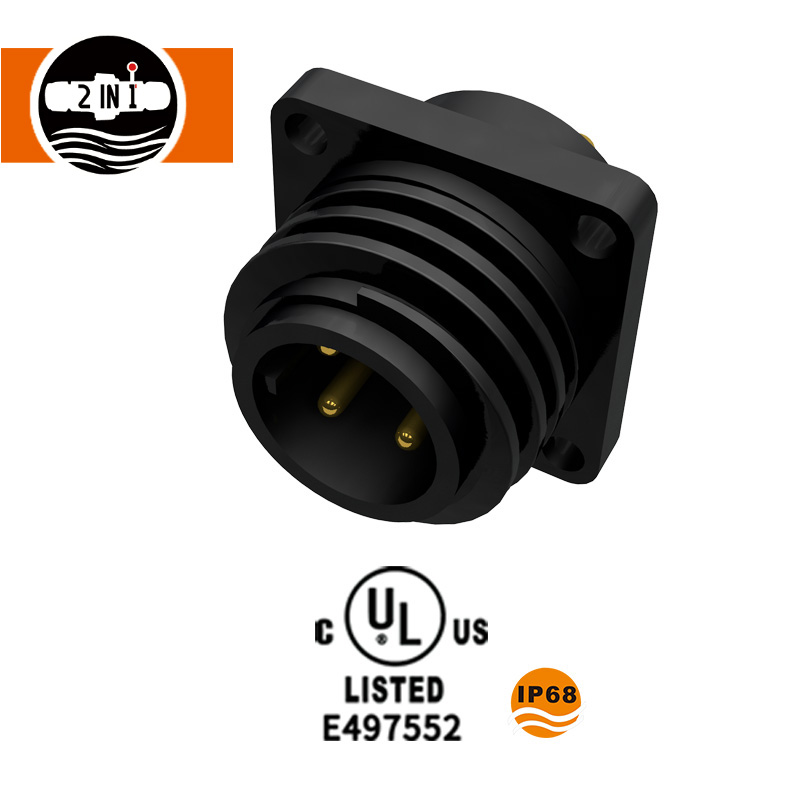

UL Waterproof Panel Mount
  • UL Waterproof Panel MountUL Waterproof Panel Mount

UL Waterproof Panel Mount

UL Waterproof Panel Mount, square size 4 pole, 7 pole, 8 pole front panel mount for board to board connection. There’re waterproof cable connectors to match with the panel mounts as well. As a professional UL Waterproof Panel Mount manufacture, you can rest assured to buy UL Waterproof Panel Mount from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

HuaYi-FaDa Technology is one of the professional UL Waterproof Panel Mount manufacturers and suppliers in China. Our UL Waterproof Panel Mount has passed UL certificate, it can be with cable or without cable as per your requirement. If with cable, cable type and cable length is customized as per your need. There are waterproof connector overmolded with cable to match with this panel mount as well.



Parameter of UL Waterproof Panel Mount

Specifications:

Product name

UL Waterproof Panel Mount

Item number

290 panel mount

Connection way

Panel mount to connect from board to board or wire to board.

Core number

2 pin, 3 pin, 4 pin available

Color

Black

Waterproof level

IP68

Cable specification

18AWG~20AWG

Rated current (A)

6A

Operating voltage (AC.V.rms)

600V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

UL94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with gold-plating

Seal

Silicon



Feature And Application of UL Waterproof Panel Mount

Feature of UL Waterproof Panel Mount:
1) Front panel mount,4pin,7pin,8pin are avilable.
2) IP68 waterproof panel mount connector.
3) Nylon material, wire to panel assembly type and wire to wire type.
4) UL certificated.

Application of UL Waterproof Panel Mount:
● Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.
● 100% new material, high-quality parts, strictly QC standard according to international customs.



Product Details of UL Waterproof Panel Mount

Connection:



Product Qualification of UL Waterproof Panel Mount

This UL Listed Waterproof Wire Connector has passed UL certificate.



Shipping And Service

1) Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.



For batch orders, it is cheaper to ship by sea.



2)Service:
We are a professional manufacturer who owns a factory. We can provide you with:

● Independent research and development.
● Cable and hardware production.
● Injection molding and mould making.
● Perfect assembly workshop.
With us, you can get the best goods in shortest time.



FAQ

1) Q: I am interested in your connectors, do you have a price list ?
A: We have no a price list of all the connectors. Because we have so many models and the price keeps changing because of the market demand. If you need the price of any our connectors, please send us your requirements, we will recommend suitable connectors and send you quotation accordingly.
2) Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 5000 sets.
For order qty over 5000 sets, T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages before you pay the balance.
3)Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.
4)Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out. 5)Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see is to believe, we believe you will be satisfied with our products.
6)Q : Can you make customized products and customized packing?
A: Yes. We have professional R&D team and customized experience for years. No matter how special request about connectors OR packing, just send us your technical request, we would make it real for you!
7) Q: Can you provide samples ? Are the samples free ?
A: Yes , we support 3pcs samples free one time for quality test before bulk order, but the shipping cost need to be paid.
8) Q: What's your payment term and payment way? Can I pay RMB ?
A: We support 100% payment before delivery by TT. Normally we charge in USD, if you would like to do in RMB,It is also welcome.
9) Q : What about your delivery time?
A: We are factory with bulk stock, usually shipment arranged within 3 working days after payment received. If no stock,we would check and keep your informed.
10) Q: Do you have a guarantee of your product quality?
A: Yes, 3 years guaranteed.
11) Q: Can I become an Agent / Dealer of HYFD Connectors?
A: Welcome! But please let me know your Country/Area first, We will check and talk more about this. If you want to do any connection related cooperation, do not hesitate to contact with us.



Hot Tags: UL Waterproof Panel Mount, China, Wholesale, Buy, Quality, Cheap, Customized, Manufacturers, Suppliers, Factory, Free Sample, Quotation, CE, UL, 3 Years Warranty
