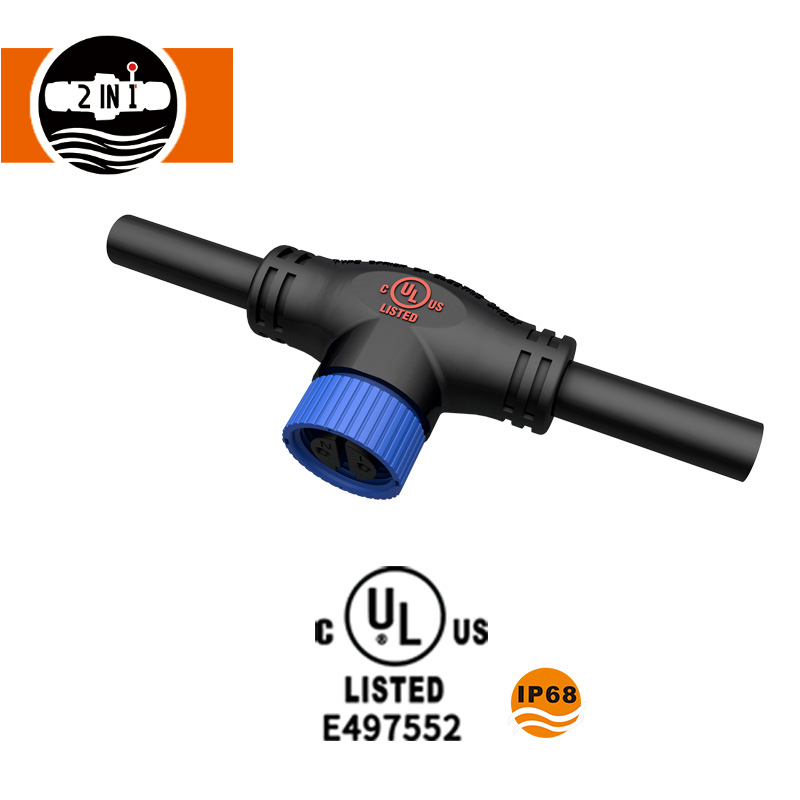

UL T Shape M15 Waterproof Connector
  • UL T Shape M15 Waterproof ConnectorUL T Shape M15 Waterproof Connector

UL T Shape M15 Waterproof Connector

UL T Shape M15 Waterproof Connector, 2 pole UL listed waterproof connector molded with cable, which is widely used for outdoor LED lighting. Tee waterproof connector with multiply outputs, which can be customized according to your requirements. Welcome to buy UL T Shape M15 Waterproof Connector from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

HuaYi-FaDa Technology is one of the professional UL T Shape M15 Waterproof Connector manufacturers and suppliers in China. Our UL T Shape M15 Waterproof Connector has passed UL certificate, 3 way UL listed connector, it is with gold-plated contact to protect against corrosion. Customized M15 male or female connector as output, and customized cable length available. This UL T Shape M15 Waterproof Connector is molded with cable, you can customize the quantity of output and the joints on the two sides as per your requirements.



Parameter of UL T Shape M15 Waterproof Connector

Specifications:

Product name

UL T Shape M15 Waterproof Connector

Item number

TQ15 molded with cable

Connection way

Molded with cable, cable type and cable length is customized.

Core number

2 pin available

Color

Black shell with black or blue color plastic nut for connection

Waterproof level

IP68

Cable specification

18AWG

Cable diameter range

8.5mm

Rated current (A)

10A

Operating voltage (AC.V.rms)

300V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

UL94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with gold-plating

Seal

Silicon


Feature And Application of UL T Shape M15 Waterproof Connector

Feature of Ul T Shape M15 Waterproof Connector:
● Easy installation: easy connection, convenient installation, can connect and match with all kind of M15-2P or M15-3P male female connector in the market.
● Good quality outdoor waterproof connector: with high performance engineer plastic material, which is good for environmental protection, please feel free to use the outdoor junction box.
● Long service life exterior connector: UV resistance material ensure its anti-aging function, 3 years life time when used in normal environment.

PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.

Application industries:


- LED screen

-Automation

- Stage equipment

- Street lamp lighting

- Medical equipment

- Instruments

- Solar energy equipment

- Transport and facilities

- Electric power equipment

- Vehicle equipment

- Communications equipment

- Heavy machinery


4. Product Details of UL T Shape M15 Waterproof Connector

Connection:



Product Qualification of UL T Shape M15 Waterproof Connector

This UL F Shape M15 Waterproof Connector has passed UL, UTV, CQC certificate. It is with IP68 waterproof level.



Shipping And Service

1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.



For batch orders, it is cheaper to ship by sea.



2)Service: A)Rich experience for over 12 years.
B)Prompt delivery. small order is welcome.
C)We have strong professional design team.
D)We can offer your a good after-sell service.
E)We can open customers' own mould as per their requirement.
F)We can do the designs according to the customers' requirement.
G)We can offer you connectors with high quality & reasonable price.
H)Comprehensive R&D testing and the line of highly automatic production make our products high reliability and high operational capability.



FAQ

1) Q: I am interested in your connectors, do you have a price list ?
A: We have no a price list of all the connectors. Because we have so many models and the price keeps changing because of the market demand. If you need the price of any our connectors, please send us your requirements, we will recommend suitable connectors and send you quotation accordingly.
2) Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 5000 sets.
For order qty over 5000 sets, T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages before you pay the balance.
3)Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.
4)Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out. 5)Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see is to believe, we believe you will be satisfied with our products.
6)Q : Can you make customized products and customized packing?
A: Yes. We have professional R&D team and customized experience for years. No matter how special request about connectors OR packing, just send us your technical request, we would make it real for you!
7) Q: Can you provide samples ? Are the samples free ?
A: Yes , we support 3pcs samples free one time for quality test before bulk order, but the shipping cost need to be paid.
8) Q: What's your payment term and payment way? Can I pay RMB ?
A: We support 100% payment before delivery by TT. Normally we charge in USD, if you would like to do in RMB,It is also welcome.
9) Q : What about your delivery time?
A: We are factory with bulk stock, usually shipment arranged within 3 working days after payment received. If no stock,we would check and keep your informed.
10) Q: Do you have a guarantee of your product quality?
A: Yes, 3 years guaranteed.
11) Q: Can I become an Agent / Dealer of HYFD Connectors?
A: Welcome! But please let me know your Country/Area first, We will check and talk more about this. If you want to do any connection related cooperation, do not hesitate to contact with us.



Hot Tags: UL T Shape M15 Waterproof Connector, China, Wholesale, Buy, Quality, Cheap, Customized, Manufacturers, Suppliers, Factory, Free Sample, Quotation, CE, UL, 3 Years Warranty
