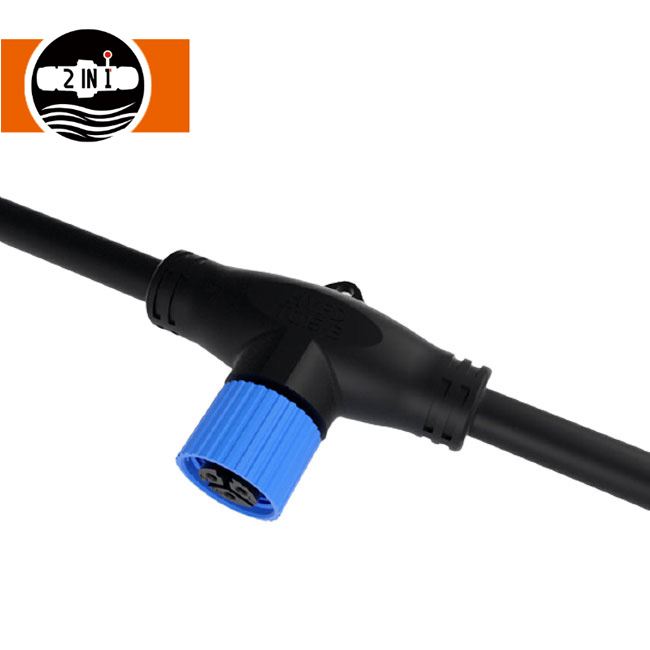

T Shape M15 Waterproof Cable Connector
  • T Shape M15 Waterproof Cable ConnectorT Shape M15 Waterproof Cable Connector

T Shape M15 Waterproof Cable Connector

T Shape M15 Waterproof Cable Connector it can match with M15 2 pin connector, M15 T shape 2 pin connector meet IP68 waterproof rating, Waterproof, moisture-proof, rain-proof, sun-proof and anti-corrosion, it widely used for LED street light. As a professional T Shape M15 Waterproof Cable Connector manufacture, you can rest assured to buy T Shape M15 Waterproof Cable Connector from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

HuaYi-FaDa Technology is one of the professional T Shape M15 Waterproof Cable Connector manufacturers and suppliers in China. This M15 T Shape Waterproof Cable Connector with High quality PA66 nylon material, ensure durability and safety, the contact pin is gold-plated brass, the copper core has the characteristics of corrosion resistance, oxidation resistance, low resistivity, good ductility, high strength and large carrying capacity. This F shape waterproof connectors are widely used in LED lighting (especially LED street lighting), flexible strip outdoor display, electrical equipment, automation machines, electrical vehicle etc.


Parameter of T Shape M15 Waterproof Cable Connector

Specifications:

Product name

T Shape M15 Waterproof Cable Connector

Item number

TQ15

Connection way

Molded with cable, cable type and cable length is customized.

Core number

2pin

Color

Black shell with blue plastic nut

Waterproof level

IP68

Cable specification

2*18AWG/2*1.0mm2

Cable diameter range

8.5mm

Rated current (A)

10A

Operating voltage (AC.V.rms)

300V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with gold-plating

Seal

Silicon


Feature And Application of T Shape M15 Waterproof Cable Connector

Features:
1. M15 t type cable connector.
2. M15 2 pin wire connectors.
3. M15 outdoor electrical T cable connectors.
4. Rated voltage:300V
5. Rated Current:10A
6.Strict QC standard according to international customs to ensure product quality

Application:
1. Electric bicycles.
2. Ships.
3. Electric vehicles.
4. LED lighting.
5. Outdoor soft strip display.
6. Electrical equipment.
7. Automated robots.

PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.


Product Details of T Shape M15 Waterproof Cable Connector


Connection:


Shipping And Service

1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.

For batch orders, it is cheaper to ship by sea.

2)Service:
We are a professional manufacturer who owns a factory. We can provide you with:
a. Decade of FACTORY production experience.
b. Rapid scale production capacity, only 15 days from mold opening to mass production.
c. Through a variety of high standards of international certification requirements: such as UL, CE, ROHS.
d. Multiple design patents.
e. Cooperation with many well-known domestic companies, such as Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
With us, you can get the best goods in shortest time.


Our advantage:

1).We can do the designs according to the customers' requirement
2).We can open customers' own mould as per their requirement
3).We can offer you connectors with high quality & reasonable price
4).We can offer your a good after-sell service
5).We have strong professional design team
6). Prompt delivery. small order is welcome
7).Rich experience for over 19 years
8).Comprehensive R&D testing and the line of highly automatic production make our products high reliability and high operational capability.



FAQ

Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
Q: What's the lead time?
A: Sample order will take 1-3 days, mass production will take 1-2 weeks for the order quantity more than 100K pieces.
Q: What is your terms of payment?
A: T/T in advance for small quantity; quantity over 5000 sets, 30% prepayment and rest before shipment.
We'll show you the photos of the products and packages before you pay the balance.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production, depending on specific order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.
Q: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 11years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.



Hot Tags: T Shape M15 Waterproof Cable Connector, China, Wholesale, Buy, Quality, Cheap, Customized, Manufacturers, Suppliers, Factory, Free Sample, Quotation, CE, UL, 3 Years Warranty
