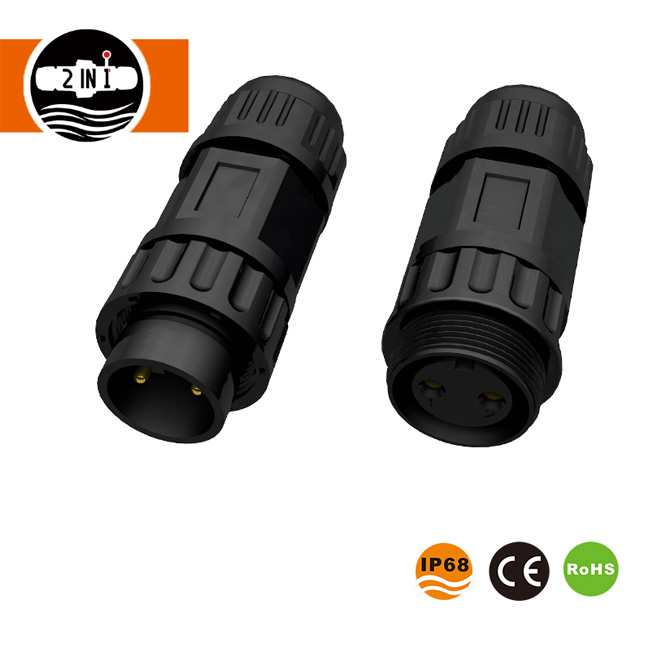

Multi Pin Waterproof Solder Wire Connector, M21 waterproof power connector is the perfect solution to make your own waterproof connection easily. Once assembled, the Multi Pin Waterproof Solder Wire Connector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends. As a professional Multi Pin Waterproof Solder Wire Connector manufacture, you can rest assured to buy Multi Pin Waterproof Solder Wire Connector from our factory and we will offer you the best after-sale service and timely delivery.
HuaYi-FaDa Technology is one of the professional Multi Pin Waterproof Solder Wire Connector manufacturers and suppliers in China. This Multi Pin Waterproof Solder Wire Connector has multiple parts to ensure its waterproof level, including o-rings, waterproof sealant, and flexible end seals designed to tighten and seal the cable after soldering with the contacts with the cable. Multiply poles available, from 2 pole, 3 pole, 4 pole, 8 pole, 12 pole, power and signal combine poles available as well, including 2+3 pole, 2+4 pole. Waterproof male female connector with solder wire connection. There are two versions for this, one is with cable and the other one is without cable.
Parameter of Multi Pin Waterproof Solder Wire Connector
Specifications: |
|
Product name |
Multi Pin Waterproof Solder Wire Connector |
Item number |
SQ21 Solder Connector without cable |
Connection way |
Solder with wire, screw locking type |
Core number |
2 pins, 3 pins, 4 pins, 8 pins, 12 pins, 2+3 pins, 2+4 pins. |
Color |
Black |
Waterproof level |
IP68 |
Cable specification |
13AWG~20AWG |
Cable diameter range |
6~11.5mm |
Rated current (A) |
15A for 2 pin, 3A for 12 pin |
Operating voltage (AC.V.rms) |
500V |
Withstand voltage (AC.V) |
1500V at 1min |
Contact resistance |
<5mΩ |
Insulation resistance |
>500MΩ |
Durability |
≥3000 mating and unmating cycles |
Temperature rating |
-40°C~105°C |
Flame-resistance |
UL94-V0 |
Material: |
|
Shell and insulated parts |
High performance engineering plastics |
Contact pin |
Copper alloy with gold-plating |
Seal |
Silicon |
Feature And Application of Multi Pin Waterproof Solder Wire Connector
1)Multi-pins connector for different industrial demands.
2)High quality outer case, anti-flame nylon material, stable and safe, compression, anti-explosion and anti-deformation.
3)Gold-plated contact, high performance of corrosion resistance
4)Conductivity effectively deal with temperature rise.
5)IP67 waterproof level.
6)Long service life
Product Details of Multi Pin Waterproof Solder Wire Connector
Connection:
Product Qualification of Multi Pin Waterproof Solder Wire Connector
This Multi Pin Waterproof Solder Wire Connector has passed CE, RoHS, CQC certificate. It is with IP68 waterproof level.
