M16 Panel Mount
  • M16 Panel MountM16 Panel Mount
  • M16 Panel MountM16 Panel Mount

M16 Panel Mount

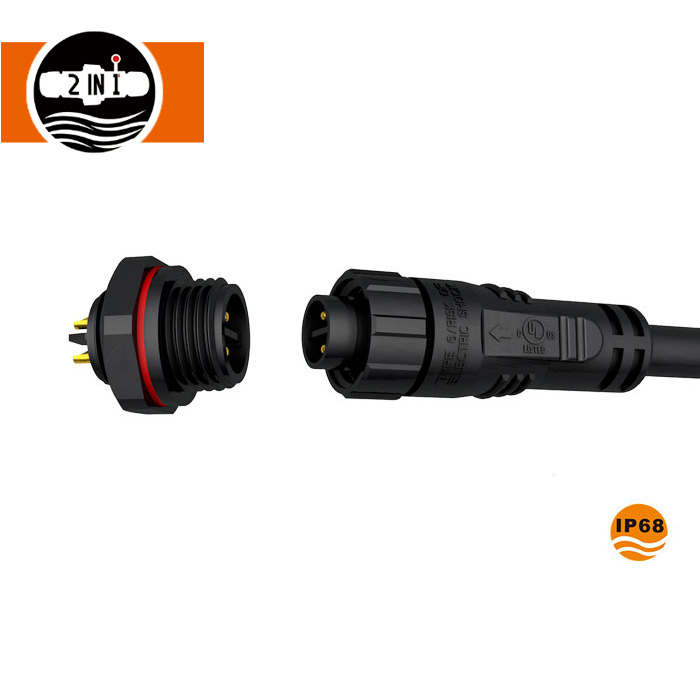

M16 panel mount waterproof connector with High quality PA66 nylon material, the grade of resistance reach 94-VO standard. low temperature resistance can reach -40℃, corrosion resistance, oil resistance, impact resistance, etc, quality ensurance, safe use. M16 panel mount connector meet IP68 waterproof rating, ensure 100% waterproof. You can rest assured to buy M16 Panel Mount from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

HuaYi-FaDa Technology is one of the professional M16 Panel Mount manufacturers and suppliers in China. we have our own brand in China and have achieved good response. Our producuts are favored by domestic and foreign customers, the M16 male and female panel mount connector have rear panel mount and front panel mount available, we also have self-locking for M16 panel mount. It is with gold-plated contact to protect against corrosion, multiple pin, 2pin, 3pin, 4pin, 5pin, 6pin,7pin, 8pin, 2+3pin, 2+4pin, OEM and ODM service design available.


Parameter of M16 panel mount

Specifications:

Product name

 M16 panel mount

Item number

SQ16 panel mount

Connection way

Molded with cable, cable type and cable length is customized.

Core number

2pin, 3pin, 4pin, 5pin, 6pin,7pin, 8pin, 2+3pin, 2+4pin

Color

Black

Waterproof level

IP67

Cable specification

0.2mm2~1.5mm2

Cable diameter range

9.0mm

Rated current (A)

2A-10A

Operating voltage (AC.V.rms)

125V-300V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with gold-plating

Seal

Silicon


Feature And Application of M16 panel mount

Feature of M16 panel mount
1.M16 male and female panel mount can match with M16 waterproof connector.
2.Rear and front male female panel mount available .
3.Nylon material to ensure the product quality and safety.

PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.

Application:
M16 waterproof connector are Widely use for outdoor lighting system, LED lamp, LED wall-washer, lighting boxes, Power equipment, Construction machinery, iron and Steel production equipment, Mining machinery, Ship machinery etc.


Product Details of M16 panel mount

Connection:

Shipping And Service

1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.

For batch orders, it is cheaper to ship by sea.

2)Service:
We are a professional manufacturer who owns a factory. We can provide you with:
● Independent research and development
● Cable and hardware production
● Injection molding and mould making
● Perfect assembly workshop
With us, you can get the best goods in shortest time.


FAQ

Q: What's the lead time?
A: Sample order will take 1-3 days, mass production will take 1-2 weeks for the order quantity more than 100K pieces.
Q: What is your terms of payment?
A: T/T in advance for small quantity; quantity over 5000 sets, 30% prepayment and rest before shipment.
We'll show you the photos of the products and packages before you pay the balance.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production, depending on specific order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.
Q: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 11years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
Q: What's the lead time?
A: Sample order will take 1-3 days, mass production will take 1-2 weeks for the order quantity more than 100K pieces.
