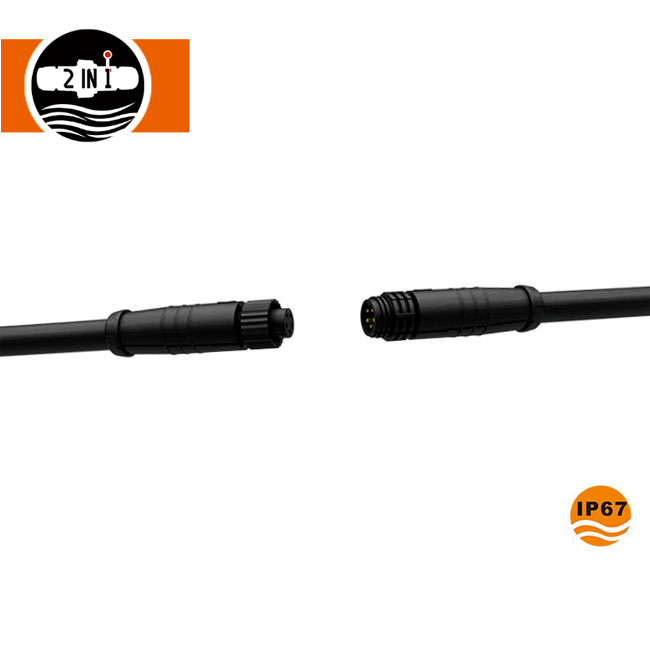

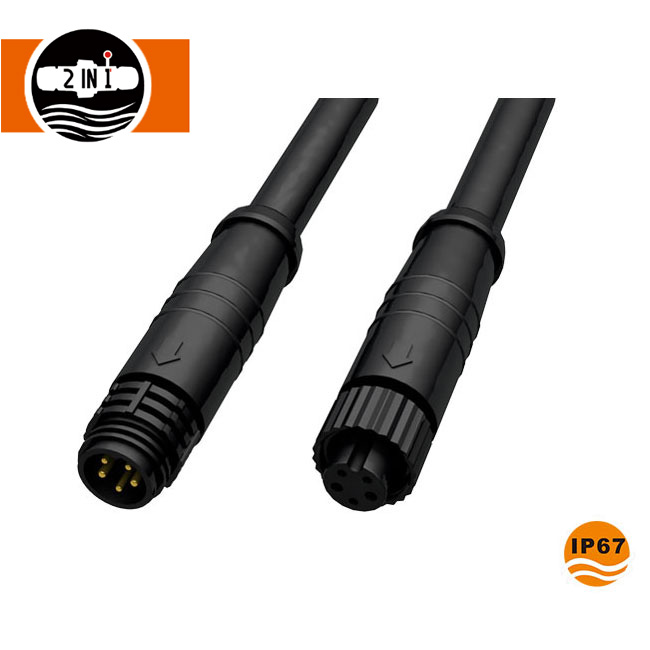

M10 Power And Signal Waterproof Extension Cord Connector

M10 Power And Signal Waterproof Extension Cord Connector, it is with gold-plated contact to protect against corrosion. M10 with low voltage of signal products tailored, the voltage current is 250V/110V. M10 connector the size is small, it can saving installation place, quick and easy mating and locking, even in places difficult to reach, anti vibration locking design. Welcome to buy M10 Power And Signal Waterproof Extension Cord Connector from HuaYi-FaDa Technology. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

HuaYi-FaDa Technology is one of the professional M10 Power And Signal Waterproof Extension Cord Connector manufacturers and suppliers in China. we have our own brand in China and have achieved good response. Our producuts are favored by domestic and foreign customers, this M10 connector is designed for the device connection for sensor/actuator boxes,field- bus modules and industrial controllers. It provides with 2pin, 2+3pin contacts configuration cable , most of the connectors are either factory PUR/PVC cable over molded or supplied with attached wire leads.


Parameter of M10 Power And Signal Waterproof Extension Cord Connector

Specifications:

Product name

M10 Power And Signal Waterproof Extension Cord Connector.

Item number

M10 molded with cable

Connection way

Molded with cable, cable type and cable length is customized.

Core number

2 pin and 2+3 pin available

Color

Black shell with black plastic nut

Waterproof level

IP67

Cable specification

0.75mm2~1.5mm2

Cable diameter range

5.0-7.0mm

Rated current (A)

8A-10A

Operating voltage (AC.V.rms)

110V-300V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with gold-plating

Seal

Silicon


Feature And Application of M10 Power And Signal Waterproof Extension Cord Connector

Feature of M10 Power And Signal Waterproof Extension Cord Connector.

1)Low voltage current
2)IP67 waterproof performance.
3)Contact pin with gold-plated brass,ensure good contacts, keep current and signal transmission more persistent.
4)Nylon material, better weather resistance and more durable

PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.

Application industries:


- LED screen

-Automation

- Stage equipment

- Street lamp lighting

- Medical equipment

- Instruments

- Solar energy equipment

- Transport and facilities

- Electric power equipment

- Vehicle equipment

- Communications equipment

- Heavy machinery


Product Details of M10 Power And Signal Waterproof Extension Cord Connector

Connection:


Shipping And Service

1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.

For batch orders, it is cheaper to ship by sea.

2)Service:
1 decade of FACTORY production experience.
2 multiple design patents.
3 cooperation with many well-known domestic companies, such as Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
4 through a variety of high standards of international certification requirements: such as UL, CE, ROHS.
5 rapid scale production capacity, only 15 days from mold opening to mass production.



FAQ

Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production, depending on specific order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.
Q: What is your terms of payment?
A: T/T in advance for small quantity; quantity over 5000 sets, 30% prepayment and rest before shipment.
Q: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 11years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
