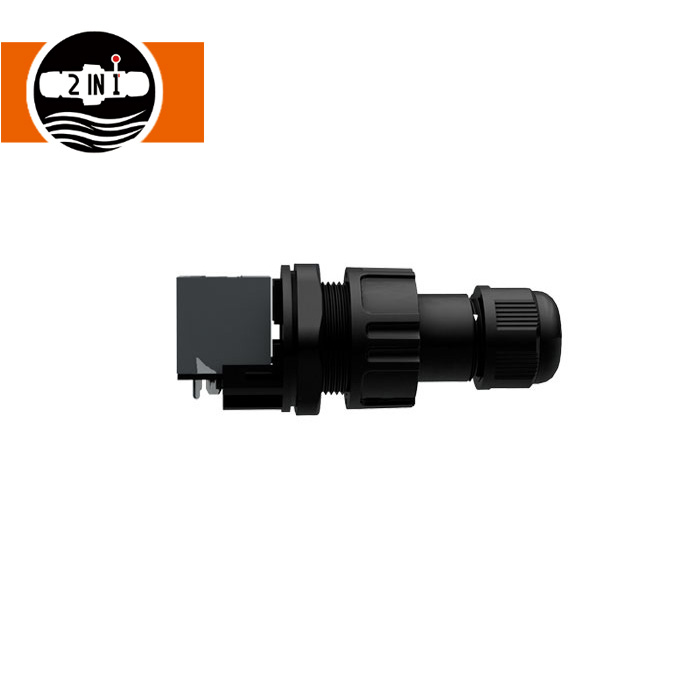

8p8c Gold-plated Rj45 Waterproof Connector
  • 8p8c Gold-plated Rj45 Waterproof Connector8p8c Gold-plated Rj45 Waterproof Connector
  • 8p8c Gold-plated Rj45 Waterproof Connector8p8c Gold-plated Rj45 Waterproof Connector

8p8c Gold-plated Rj45 Waterproof Connector

8p8c Gold-plated Rj45 Waterproof Connector, quick insert or pull out, with dust cap, prevent the network parts from moisture,dirt and insects for quality connections. Cat. 5e, Cat 6 feed-through coupler, patch cord and assembly. OEM and ODM service design available.

Send Inquiry

Product Description

1. Introduction of 8p8c Gold-plated Rj45 Waterproof Connector

8p Gold-plated Rj45 Waterproof Connector waterproof connector, RJ45 Outdoor Waterproof IP68 cable connector with ethernet plug, quick and convenient, High quality PA66 nylon material, vibration resistance, impact resistance, stretching resistance, meet IP68 waterproof rating, against dust and fluid.


2. Parameter of 8p8c Gold-plated Rj45 Waterproof Connector

Specifications:

Product name

8p Gold-plated Rj45 Waterproof Connector

Item number

RJ45 180 degree

Connection way

Molded with cable, cable type and cable length is customized.

Core number

8 pin

Color

Black

Waterproof level

IP67

Wiring

Network connection

Cable diameter range

7.0mm

Connecting cord

USB

Operating voltage (AC.V.rms)

300V

Withstand voltage (AC.V)

1500V at 1min

Contact resistance

<5mΩ

Insulation resistance

>500MΩ

Durability

≥3000 mating and unmating cycles

Temperature rating

-40°C~105°C

Flame-resistance

94-V0

Material:

Shell and insulated parts

High performance engineering plastics

Contact pin

Copper alloy with gold-plating

Seal

Silicon


3. Feature And Application of 8p8c Gold-plated Rj45 Waterproof Connector

Feature of 8p Gold-plated Rj45 Waterproof Connector
1) Cat. 5e, Cat 6 feed-through coupler, patch cord and assembly.
2) Ethernet plug in outdoor or waterproof harsh working environment, no need soldering.
3) IP68 waterproof class .
4) With dust cap,prevent the network parts from moisture,dirt and insects for quality connections.

PS: Remember DO NOT immerse waterproof electrical connectors in the the water for long time.

Application:
- Industrial ethernet in audio, business, amusement
- Industrial indoor and outdoor event in network environment
- Live stage action
- DMX lighting
- Monitoring


4. Product Details of 8p8c Gold-plated Rj45 Waterproof Connector

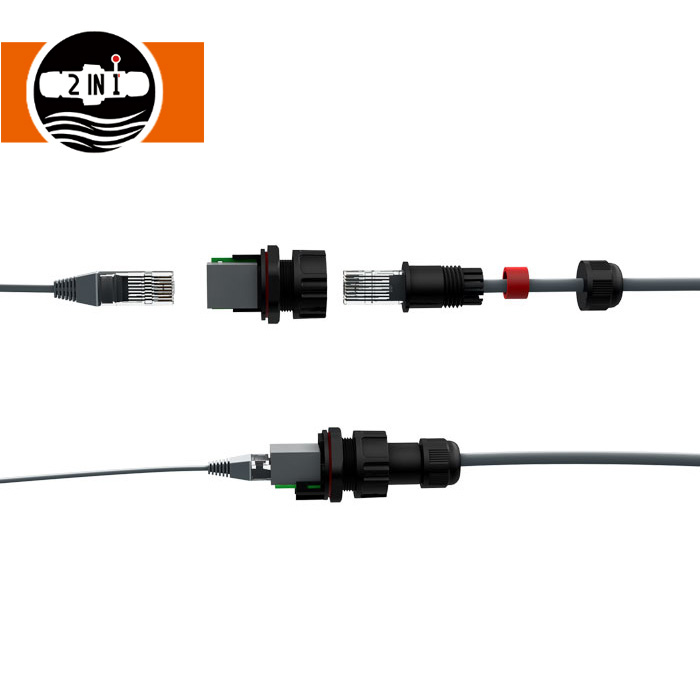

Connection:


5. Shipping And Service

1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.

For batch orders, it is cheaper to ship by sea.

2)Service:
We are a professional manufacturer who owns a factory. We can provide you with:
● Independent research and development
● Cable and hardware production
● Injection molding and mould making
● Perfect assembly workshop
With us, you can get the best goods in shortest time.


6. FAQ

Q: What's the lead time?
A: Sample order will take 1-3 days, mass production will take 1-2 weeks for the order quantity more than 100K pieces.
Q: What is your terms of payment?
A: T/T in advance for small quantity; quantity over 5000 sets, 30% prepayment and rest before shipment.
We'll show you the photos of the products and packages before you pay the balance.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production, depending on specific order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.
Q: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 11years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
Q: What's the lead time?
A: Sample order will take 1-3 days, mass production will take 1-2 weeks for the order quantity more than 100K pieces.
