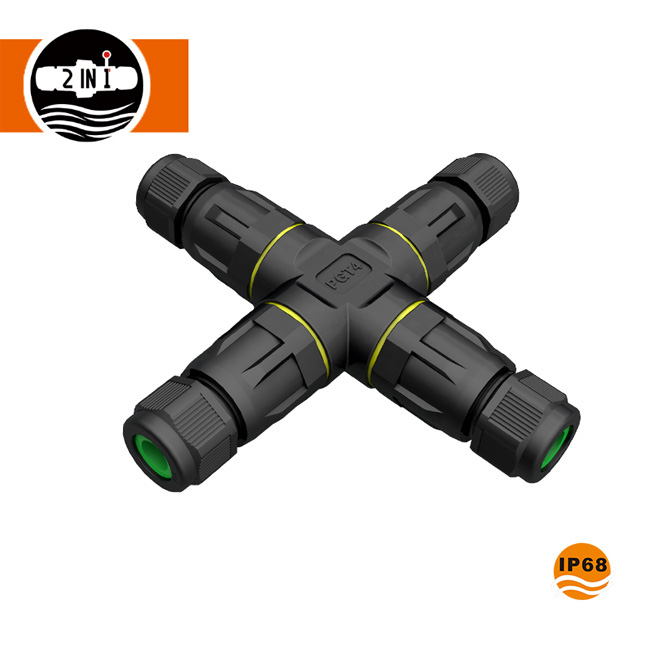

10A 4 Way Waterproof Screw Connector, 2 pole, 3 pole, 4 pole available, screw terminal, easy to connect and disconnect. You can rest assured to buy 10A 4 Way Waterproof Screw Connector from our factory and we will offer you the best after-sale service and timely delivery.
HuaYi-FaDa Technology is one of the professional 10A 4 Way Waterproof Screw Connector manufacturers and suppliers in China. we have our own brand in China and have achieved good response. Our producuts are favored by domestic and foreign customers. This 10A 4 Way Waterproof Screw Connector has 2 pin, 3 pin, 4 pin available, brand-new nylon material greatly improves product durability and safety while using.
Parameter of 10A 4 Way Waterproof Screw Connector
Specifications: |
|
Product name |
10A 4 Way Waterproof Screw Connector |
Item number |
PGT4 |
Connection way |
Screw terminal for quick connection |
Core number |
2 pin, 3 pin, 4 pin available |
Color |
Black |
Waterproof level |
IP68 |
Cable specification |
14AWG~18AWG |
Cable diameter range |
6.0mm~12.0mm |
Rated current (A) |
10A |
Operating voltage (AC.V.rms) |
500V |
Withstand voltage (AC.V) |
1500V at 1min |
Contact resistance |
<5mΩ |
Insulation resistance |
>500MΩ |
Durability |
≥3000 mating and unmating cycles |
Temperature rating |
-40°C~105°C |
Flame-resistance |
UL94-V0 |
Material: |
|
Shell and insulated parts |
High performance engineering plastics |
Contact pin |
Copper alloy with nickel-plating |
Seal |
Silicon |
Feature And Application of 10A 4 Way Waterproof Screw Connector
1)Internal screw terminal for easy connection.
2)T shape 4 way junction terminal connector.
3)2 pin, 3 pin, 4 pin available.
Product Details of 10A 4 Way Waterproof Screw Connector
Connection:
Shipping And Service
1)Shipping: for small orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive.
For batch orders, it is cheaper to ship by sea.
2)Service:
Competitive Price And Service
•Free Samples Available:3-5 PCS of each part number
•Delivery Time: 2-3 Weeks After Orders
•OEM, ODM Service As Per Customer's Requirements
•Competitive Price
Professional Certification
•ISO 9001:2008
•UL Certification
•TUV Certification
•RoHS Compliance
100% Guarantee Quality
•Manufactured Under Strict Control
•100% Tested (Not Just Batch Tested)
•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years
•Quality Guarantee: 3 Years
FAQ
1) Q: I am interested in your connectors, do you have a price list ?
A: We have no a price list of all the connectors. Because we have so many models and the price keeps changing because of the market demand. If you need the price of any our connectors, please send us your requirements, we will recommend suitable connectors and send you quotation accordingly.
2) Q : Can you make customized products and customized packing?
A: Yes. We have professional R&D team and customized experience for years. No matter how special request about connectors OR packing, just send us your technical request, we would make it real for you!
3) Q: Can you provide samples ? Are the samples free ?
A: Yes , we support 3pcs samples free one time for quality test before bulk order, but the shipping cost need to be paid.
4) Q: What's your payment term and payment way? Can I pay RMB ?
A: We support 100% payment before delivery by TT. Normally we charge in USD, if you would like to do in RMB,It is also welcome.
5) Q : What about your delivery time?
A: We are factory with bulk stock, usually shipment arranged within 3 working days after payment received. If no stock,we would check and keep your informed.
6) Q: Do you have a guarantee of your product quality?
A: Yes, 3 years guaranteed.
7) Q: Can I become an Agent / Dealer of HYFD Connectors?
A: Welcome! But please let me know your Country/Area first, We will check and talk more about this. If you want to do any connection related cooperation, do not hesitate to contact with us.
8)Q: What is the packing ?
A: Well, we pack it in neutral cartons. If you have requirements on the packing, we can do it as well as long as you can meet the MOQ for customized packing.
9) Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 5000 sets.
For order qty over 5000 sets, T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages before you pay the balance.
10) Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.
11)Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
12)Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see is to believe, we believe you will be satisfied with our products.
13)Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
